Fully Automatic Metal Rain Gutter Roll Forming Machine
Our Product Introduction
for more products please visit us on roll-formermachines.com
Basic Information
Place of Origin:
Zhejiang,China
Brand Name:
Hangzhou Maxwell
Certification:
CE,ISO9001
Model Number:
YX153*105
Minimum Order Quantity:
1 SET
Price:
USD25000-USD28000/set
Packaging Details:
Nude Packaging in a 40 feet container
Delivery Time:
60 work days
Payment Terms:
T/T, L/C
Supply Ability:
20 sets per month
Product Specification
Name:
Gutter Downspout Machine
Applicable Industries:
Manufacturing Plant, Machinery Repair Shops, Building Material Shops, Manufacturing Plant, Construction Works ,OthersFood & Beverage Factory, Farms, Restaurant,
Tile Type:
PPGI,Q235
Rolling Thickness:
0.4-0.9
Feeding Width:
500mm
Forming Speed:
15m/min
Material Of Blade:
Cr12MoV With Quench Treatment
Advantage:
Foming And Elbow In One Machine
Highlight:
Fully Automatic Rain Gutter Roll Forming Machine
,Metal Rain Gutter Roll Forming Machine
,15m/min Downspout Gutter Machine
Our Product Introduction
for more products please visit us on roll-formermachines.com
Product Description

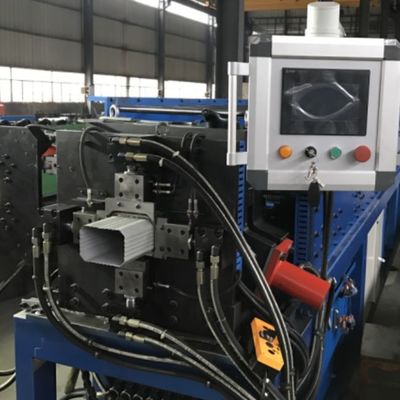

Fully Automatic Metal Rain Gutter Square Downspouts And Elbow Roll Forming Machine
Downspouts are used to collect and direct rainwater from the roof, preventing water from seeping into the building's foundation and walls, thus avoiding structural damage. Our fully automatic downspout with elbow roll forming machines feature PLC system control, allowing for automatic length cutting and arc bending based on input parameters such as length, quantity, and arc size.
Main Parameter
| Forming Speed | 10-15 m/min |
| Rolling Thickness | 0.4-0.9mm |
| Control Mode | Siemens PLC |
| Feeding Width | 500mm |
| Forming Station | 26 stands |
| Roll material | Gcr15 quenching of steel after finishing HRC58-62℃,surface chrome plating |
| Shaft material and diameter | 45# Steel finishing,Shaft diameter is￠75mm |
| Main engine power | 7.5kw |
| Power of hydraulic station | 15kw |
| Hydraulic pressure | 12Mpa |
| Scissors material | Cr12Mov, quench HRC 58-62℃ |
Profile Drawing
Chart Flow
Uncoil---Feeding---Roll Forming---Customized Cut-off---Fixed Arc Bending(optional)---output
Packaging and Shipping
1. Anti-corrosion oil is sprayed during transportation to prevent oxidation of the machine
2. Packaging isolation film to prevent machine oxidation during transportation
3. Fixed on the container with wire to prevent damage to the machine during transportation
Terms of Trade
1. Minimum order quantity (MOQ): 1 set
2. Delivery time: about 60 workdays
3. Port of loading: port of Shanghai
4. Type of payment: by T/T or by L/C
After-sales Service
1. Technical Support: Our experienced technical team is available to provide assistance and guidance on product installation, operation, and maintenance.
2. Spare Parts Supply: We maintain a stock of genuine spare parts to quickly solve any equipment issues and minimize downtime.
3. Training Programs: We offer training programs for your staff to ensure they are proficient in using and maintaining our equipment effectively.
4. Warranty Coverage: The warranty is one year after the client receives the machine. All our products come with a warranty period, during which we provide prompt repair or replacement services for any defects covered under the warranty terms.
5. Regular Maintenance: We recommend and offer scheduled maintenance services to keep your equipment in optimal condition and maximize its lifespan.
6. Customer Feedback: We value your feedback and continuously strive to improve our products and services based on your input.
